300W-8L OXYGEN PLASMA CLEANER / SURFACE TREATMENT EQUIPEMENT-NST-M8L
Plasma cleaning machine divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.
NST generator has 40KHz, 13.56Mhz, and 2.45GHz. According to the usage, can choose the suitable NST.
₹ 650,000.00 ₹ 750,000.00
TECHNICAL PARAMETER
| Model No. | NST-M8L |
| Product Name | 8L Plasma Cleaner |
| Operation | Manual |
| Working voltage | AC 220V, 50Hz |
| RF Frequency | 40KHz (13.56MHz for optional) |
| Coupled mode | condenser coupling, without pollute sample |
| RF power | 300 w |
| RF offset | < 0.2KHz |
| Characteristic impedance | 50Ω, automatic matching |
| Vacuum degree | 10-100Pa, equipped with a mechanical pump
If request high vacuum, please select our turbo pump system (Optional) |
| Gas speed | Two way Float Flow Gas Control10-100ml/min, adjustable |
| Control | Manual |
| Inner chamber size | Stainless Steel Chamber with Φ 210X250mm
If Chamber is not enough for using, we have Φ 210X250mm (capacity: 8L) 200* 200*260mm (capacity: 10L)for optional |
| Pressure Gauge | A simple digital pressure gauge is equipped for reading
If request high precision vacuum reading, please select digital vacuum gauge: (Optional) |
| Cooling way | Forced cooling |
| Outer dimension | 440*390*200mm |
| Gross weight | 35 kg |
| Time of delivery | 10 working days after receive the payment |
| Weight | 35 kg |
|---|---|
| Dimensions | 577 × 555 × 350 mm |
| Frequency | |
| Chamber Material |
Based on 0 reviews
Be the first to review “300W-8L OXYGEN PLASMA CLEANER / SURFACE TREATMENT EQUIPEMENT-NST-M8L”
Related products
-
Oxygen Plasma Cleaners
NST Oxygen Plasma Cleaner
Featrues
1. Environmental technologies: plasma process is the role of gas – solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides.
SKU: n/a -
Oxygen Plasma Cleaners

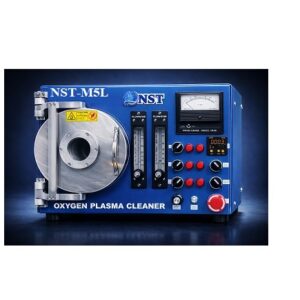

300W-5L OXYGEN PLASMA CLEANER / SURFACE TREATMENT EQUIPEMENT-NST-M5L
