NST 91L 250°C Vacuum Oven (18x18x18″ ) with Digital Temperature Controller & Inner Chamber – DZF-6090

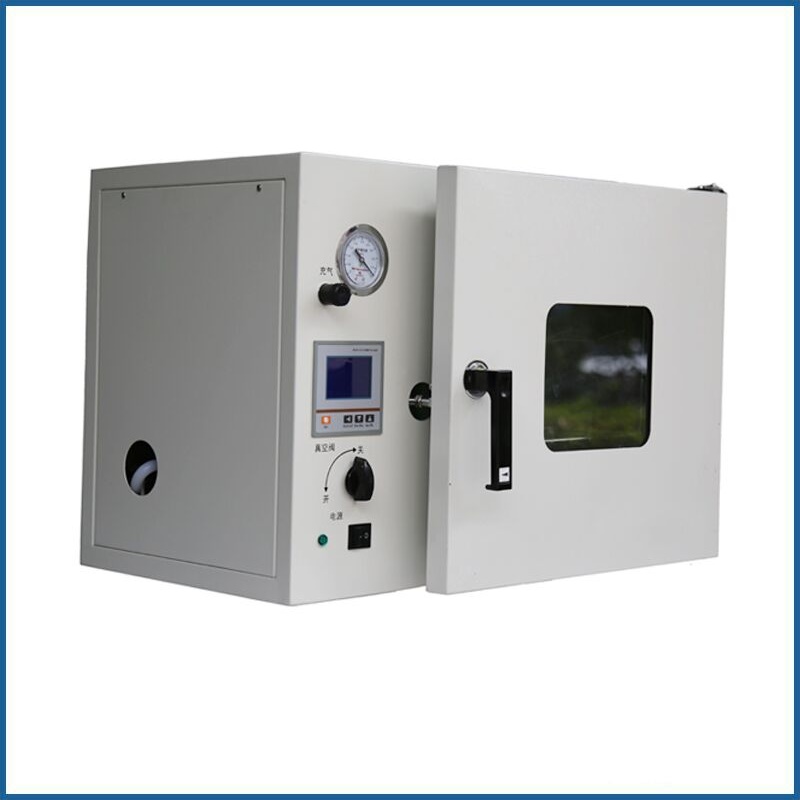

TMAX-DZF-6090 is a middle size vacuum oven with max working temperature 250°C and 91 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
SPECIFICATIONS:
Model | 6052 | 6210 | 6090 | 6250 | 6050 | 6051 | 6021 | 6020 | 6030A
Special for chemistriy |
6030B/6050B
Special for chemistriy |
|
Electrical Requirements | 220V 50Hz | 380V
50Hz |
220V 50Hz | ||||||||
Input Power | 2100W | 1400W | 3000W | 1400W | 1400W | 500W | 500W | 500W | 400W/700W | ||
Temperature Range | RT | RT+10~250℃ | RT+10~200℃ | RT+10~250℃ | RT+10~65℃ | ||||||
Temperature
Control/Stability |
0.1℃/±0.5℃ | ||||||||||
Vacuum Degree | 133Pa | ||||||||||
Ambient Temperature | +5~40℃ | ||||||||||
Interior Dimension
(mm)W*D*H |
415*370*345 | 560*640*600 | 450*450*450 | 700*600*600 | 415*370*345 | 300*300*275 | 320*320*300 | 320*320*300
415*370*345 |
|||
Overall Dimension | 720*525*535 | 720*820*1750 | 615*590*1470 | 1050*760*910 | 720*525*535 | 580*450*450 | 630*510*460 | 610*510*490
710*560*550 |
|||
shelves | 2(pcs) | 3(pcs) | 2(pcs) | 3(pcs) | 2(pcs)
|
1(pcs)
|
1(pcs)
|
1/2 (pcs) | |||
Chamber Material | Stainless | Rolled sheet | Stainless |
Vacuum Pump (optional) |
Ultimate Vacuum Level: 1000 millitorrs. |
Temperature Controller | 1. Single point temperature setting 2. Built-in over-temperature protection 3. PID precise temperature control 4. Temperature control accuracy: +/-0.1°C 5. Temperature uniformity: +/-2.5°C @ 100°C, 25″ Hg at center 6″x6″ area only |
Fittings | This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump. |
Compliance | CE Certified |
Warranty | One years limited warranty with lifetime technical support |
Attention | 1. It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality. 2. Please do not place the sample on the chamber bottom directly. |
