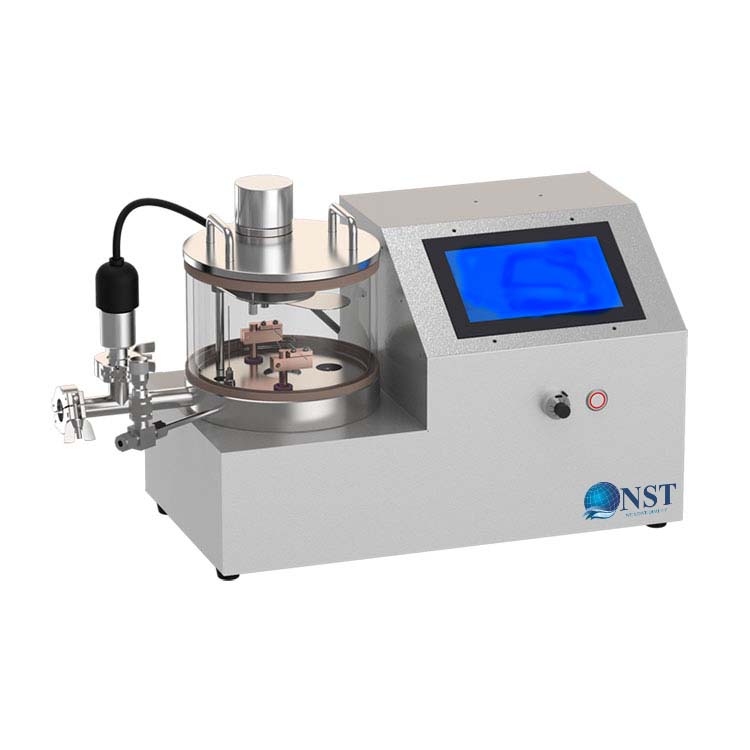

NST Small high vacuum thermal evaporation coater


1,100,000.00 1,200,000.00

Compare

TECHNICAL PARAMETER

NST The instrument is a high vacuum compact thermal evaporation coater with evaporation temperature from 200℃ to 1700℃. The tungsten wire basket is used as the evaporation source, and the evaporation source is built in at the bottom of high purity alumina crucible. The upper cover is equipped with a rotatable sample stage, which can effectively improve the uniformity of film formation. The instrument has a high-precision temperature control system and uses circulating heating method, which can stabilize the evaporation of metals and organic matter. Stainless steel high-vacuum chamber design, with high-precision molecular pump, can achieve high vacuum requirements, the high vacuum can effectively improve the efficiency and quality of the evaporation coating.

Small high vacuum thermal evaporation coater application:

This equipment is suitable for evaporation coating of most metals and certain organic material films.

Small high vacuum thermal evaporation coater technical parameters:

Small high vacuum thermal evaporation coater
Sample stage Size Φ65mm Distance to evaporation source 60mm~100mm   adjustable
Rotary speed 1-20rpm   adjustable
Evaporation system Evaporation source Tungsten wire basket Max temperature 1700℃
Thermocouple S type   thermocouple
Vacuum   chamber Chamber size φ170mm × 200mm Observation   Window Quartz   observation window φ70
Chamber material Stainless steel Opening way Top cover open
Vacuum system Model NST-GZK103-A Pumping   interface KF40
Molecular pump NST-600 Exhaust   interface KF16
Backing pump Rotary vane pump Vacuum   measurement Compound vacuum gauge
Ultimate   vacuum 1.0E-5Pa
Pumping ate Molecular pump: 600L/S rotary

Rotary vane pump: 1.1L/S

comprehensive   pumping performance: 20 minutes vacuum up to: 1.0E-3pa

Other parameters Supply voltage AC220V,50Hz Dimensions 600mm×300mm×470mm
Total power 1.5kw Total weight 40kg

Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will improve and modify any information on the website from time to time without prior notice.
